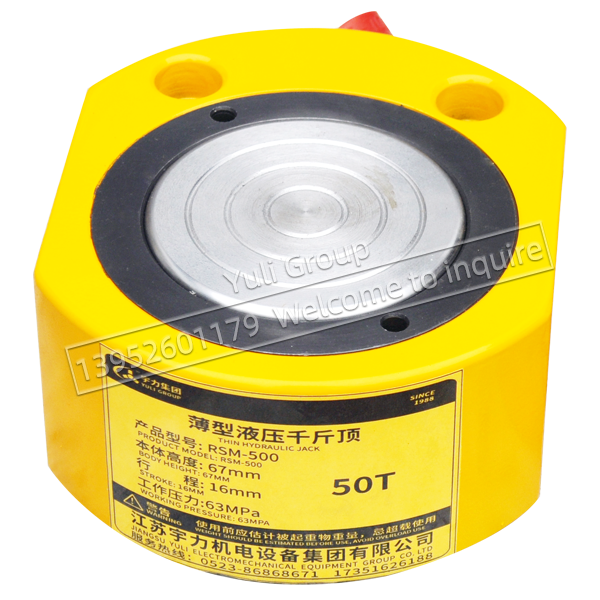

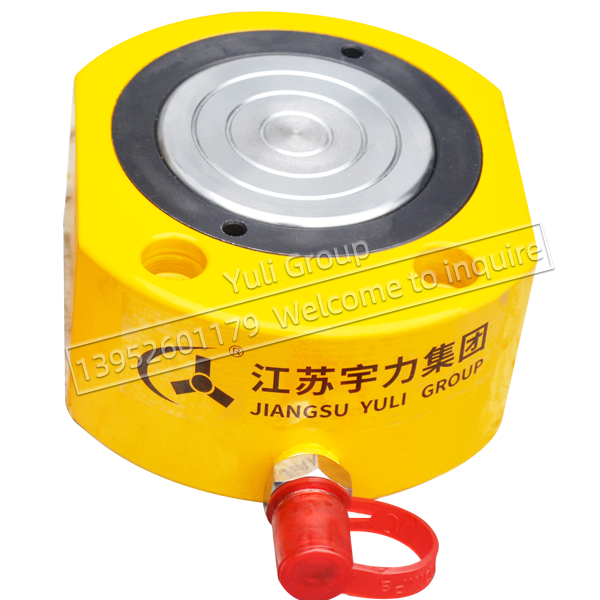

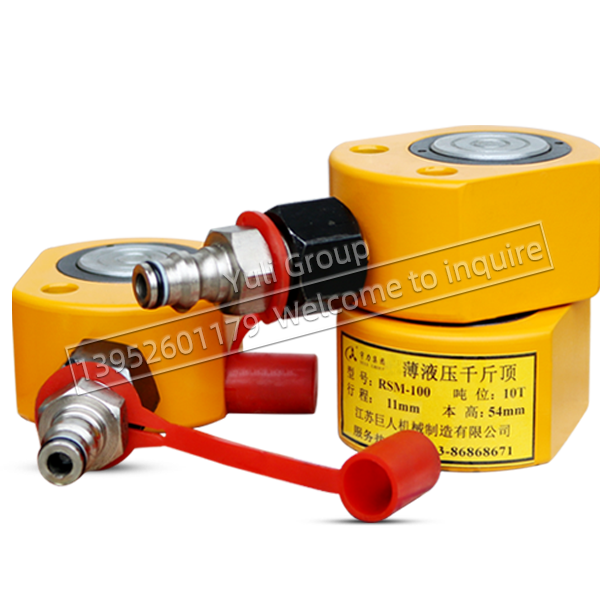

RSM thin hydraulic jack

Lightweight and compact design for use in small working spaces with restricted height.

The surface is treated with corrosion resistance, bright and not easy to rust.

Alloy steel is heat treated and processed by imported CNC lathe, drilling machine and grinder.Seals make the oil cylinder difficult to wear when working continuously.

The dust-proof sealing ring can reduce pollution and extend the service life of the cylinder.

The plunger head has a heat-treated groove, no saddle is needed.Lightweight, easy to carry, easy to install and fix.


  • Features

Lightweight and compact design, a single jack can provide 90 tons of bearing capacity.

It is widely used for lifting heavy objects in steel plants, power plants, shipyards, cement plants, and lifting bridges.


  • Parameters


Model

Tonnage

Stroke

Body height

Stretch height

Cylinder outer diameter

Inner diameter of oil cylinder

Plunger diameter

Weight

RSM-50

5

6

39

45

64×52

40

35

1

RSM-100

10

11

43

54

83×66

45

38

1.4

RSM-200

20

11

52

63

102×85

63

50

3.1

RSM-300

30

13

59

72

128×105

80

65

4.5

RSM-500

50

16

67

83

148×128

100

80

6.8

RSM-750

75

16

80

96

188×160

125

100

11.4

RSM-1000

100

16

86

102

208×180

140

105

14.5

RSM-1500

150

16

100

116

250×220

160

130


RSM-2000

200

20

110

130

280×250

200

165

32.5

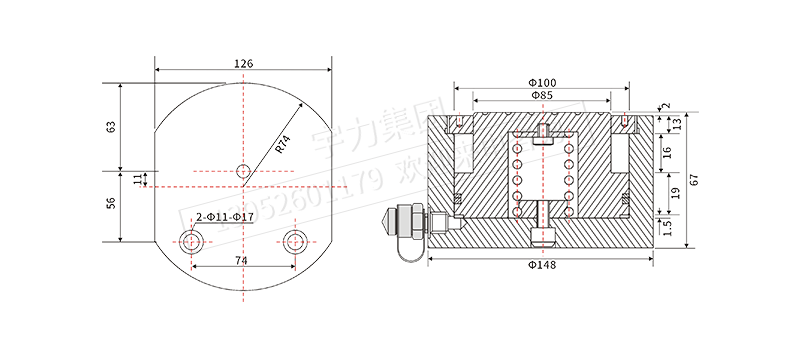

RSM-500-50-16Itinerary diagram

  • Programme

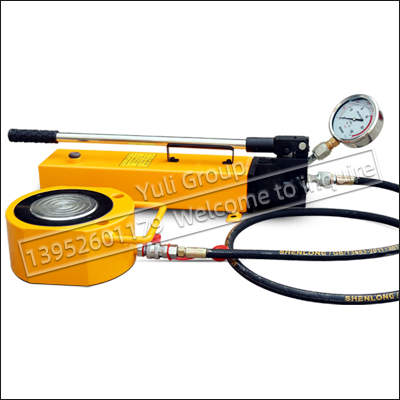

Conventional light manual thin hydraulic jack set

Features: Flat design is suitable for narrow spaces, spring retracts, wear resistance, and handles over 50 tons.

Uses: used in various industries such as transportation, railways, bridges, shipbuilding, construction, factories and mines

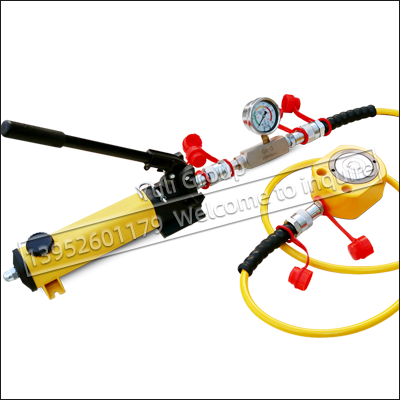

Conventional manual thin hydraulic jack set

Features: Flat design is suitable for narrow spaces, spring retracts, wear resistance, and handles over 50 tons.

Uses: used in various industries such as transportation, railways, bridges, shipbuilding, construction, factories and mines
