Position:Home - Products - Pump series (manual) - Light hand pump
Light hand pump

Lightweight and compact designDurable and durable reinforced engineering plastic mailbox and nylon-encapsulated aluminum pump body has strong corrosion resistance, two-speed operation, and the handle stroke is reduced compared with single-speed operation. The handle is labor-saving and reduces the operator's labor. The p-842 pump is equipped with a 4-port valve to operate a double-acting cylinder. The handle can be locked and the lightweight structure is easy to carry. The large capacity of the fuel tank is suitable for more models of cylinders and tools. Special handle protection The operator has a built-in safety valve for overload protection.

  • Features

1. Aluminum pump body

 2. Durable

 3. Lightweight and compact

4. Easy to carry

  • Parameters

Model

Oil volume/cm³

Oil pressure/mpa

Oil output/stroke

Long×Width×high

Outlet thread

Weight

Pump type

Low pressure

High pressure

P141

328

70

/

0.9

337×95×143

1/4-18NPT

2.0kg

Single speed/Single acting

P391

901

70

/

2.47

533×121×178

3/8-18NPT

4.1kg

Single speed/Single acting

P142

328

70

3.62

0.9

337×95×143

1/4-18NPT

2.0kg

Two-speed/Single acting

P392

901

70

11.62

2.47

533×121×178

3/8-18NPT

4.1kg

Two-speed/Single acting

P802

2540

70

39.33

2.47

552×121×229

3/8-18NPT

8.2kg

Two-speed/Single acting

P842

2540

70

9.33

2.47

552×121×229

3/8-18NPT

10.0kg

Two-speed/Single acting



  • Programme

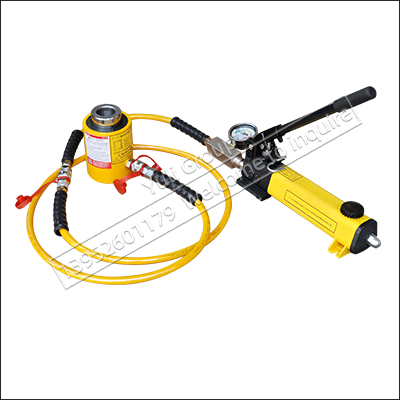

Lightweight manual set

Features:1. Aluminum pump body 2. Durable 3. Lightweight and compact 4. Easy to carry

uses:With supporting oil cylinders and special equipment, various operations can be performed, such as lifting,

bending, straightening, shearing riveting, assembly, disassembly, and some construction and military construction requirements.

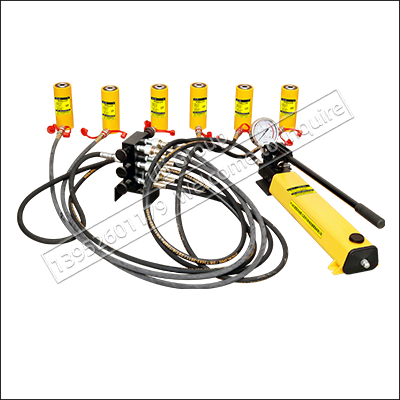

Lightweight manual six sync suit

Features: 1. Aluminum pump body 2. Durable 3. Lightweight and compact 4. Easy to carry

uses: In the case of supporting cylinders and special equipment, various operations can be performed, such as lifting bending, straightening, cutting,  riveting, assembly, disassembly, and some construction and military construction requirements.
