Foot hydraulic pump

The design of the pump, low-pressure two-disconnect oil meter block, even without electricity, easy to operate.Under any working pressure, the function is the same as electric. Foot-operated operation allows the operator to hold the tool or the workpiece pressure to protect the intermediate stop, and the internal high-pressure protection hydraulic valve is designed. A wide fixed frame at the bottom of the hydraulic pump can increase the stability of operation during operation. The tubing can be purchased and lengthened at will, with a quick connector, and a pressure gauge can be installed.


  • Features

Steel structure, sturdy and durable, compact design; two-stage hydraulic design, improve work efficiency.


  • Parameters

Parameter model

Output pressure/kgf/cm²/psi

Output pressure/kgf/cm²

Hydraulic oil output/cc

Weight/kg

Oil storage/CC

Size/cm

Low pressure

high pressure

Low pressure

high pressure

HHB-800

700/10000

0-20

20-700

12.26

2.26

12.2

1400

45×15×20




  • Programme

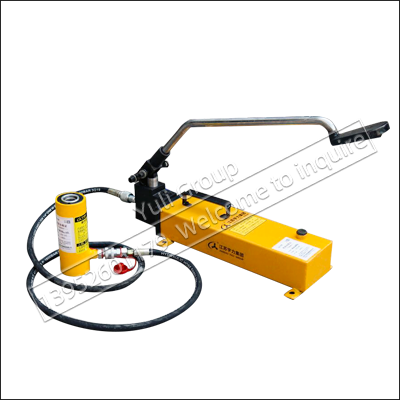

Foot hydraulic pump manual set


Features: steel structure, sturdy and durable, compact design; two-stage hydraulic design, improve work efficiency,  external pressure release valve, built-      in protection valve; convenient fuel port design; pedal locking device and light design, easy to carry.

Uses: This product is widely used in electric power, chemical, steel, bridge, machinery and other enterprises.

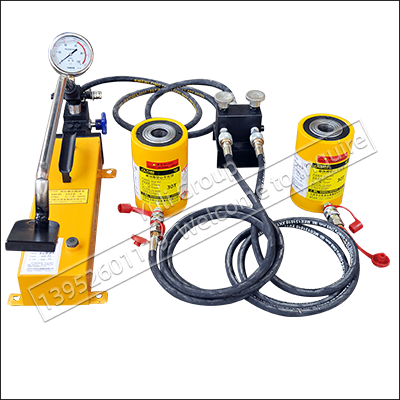

Foot hydraulic pump two synchronization set

Features: steel structure, sturdy and durable, compact design; two-stage hydraulic design to improve work efficiency,

external pressure release valve, built-in protection valve; convenient fuel port design, pedal locking device and light design, easy to carry.

Uses: This product is widely used in electric power, chemical, steel, bridge, machinery and other enterprises.
