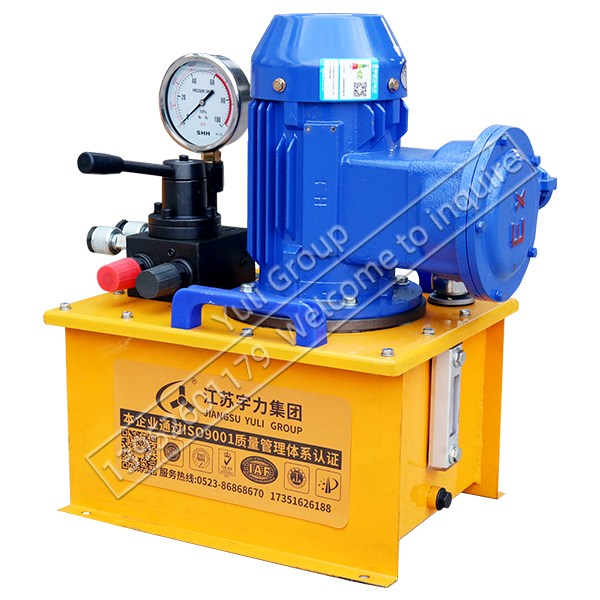

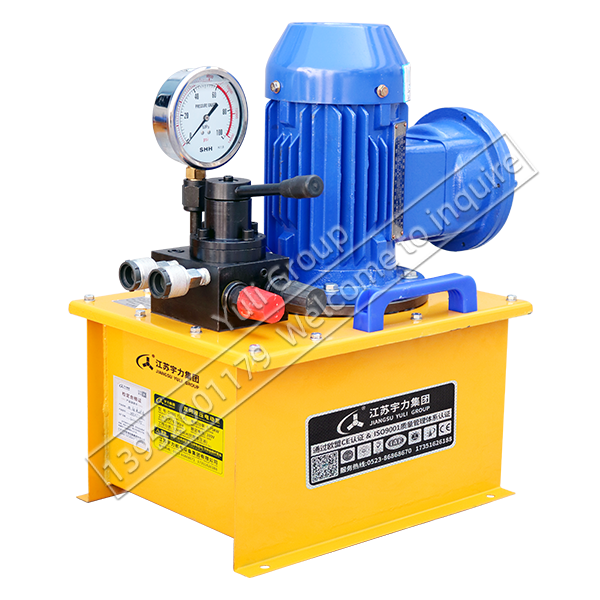

Explosion-proof electric pump

The hydraulic electric pump has dual-circuit oil supply to avoid slow spring return and non-synchronization. It is convenient and quick: the product design has high and low pressure two-break type, fast oil output, fast speed, high efficiency, and high pressure; pressure is adopted The meter overload protection device can avoid overload damage. At the same time, there is a pressure gauge, which can observe the pressure changes during work at any time.


  • Features

Overvoltage protection, reliable device, aluminum case, durable.


  • Parameters

Parameter model

preset pressure

Limited Data

Motor Power

Fuel tank capacity

High pressure

Low pressure

High pressure flow

Low pressure flow

DFB0.75

63Mpa

6.3Mpa

0.7L/min

2.4L/min

0.75KW

15L

DFB1.5

63Mpa

4Mpa

1.0L/min

6L/min

1.5KW

30L,40L,60L

DFB2.2

63Mpa

4Mpa

2.4L/min

9L/min

2.2KW

40L,60L

DFB3.0

63Mpa

4Mpa

3.0L/min

9L/min

3.0KW

40L,60L

DFB4.0

63Mpa

4Mpa

4.0L/min

9L/min

4.0KW

40L,60L

DFB5.5

63Mpa

64Mpa

6.0L/min

9L/min

5.5KW

90L,120L

DFB7.5

63Mpa

4Mpa

7.0L/min

9L/min

7.5KW

90L,120L

DFB11

63Mpa

4Mpa

11.0L/min

23L/min

11.0KW

160L,200L,300L

DFB15

63Mpa

4Mpa

15.0L/min

23L/min

15.0KW

160L,200L,300L
