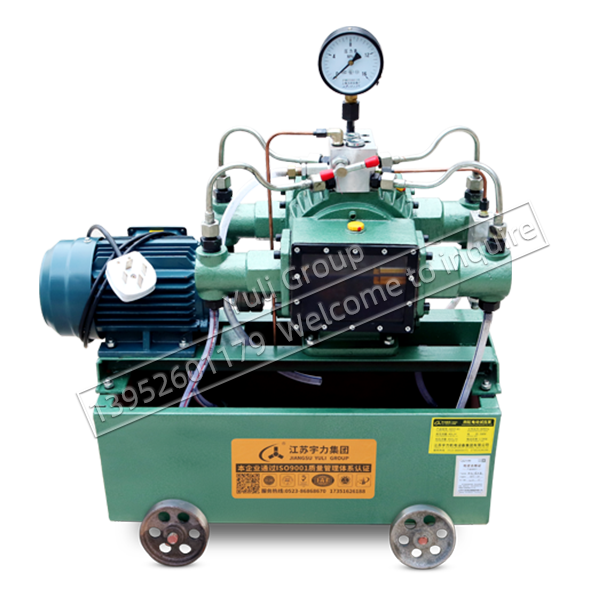

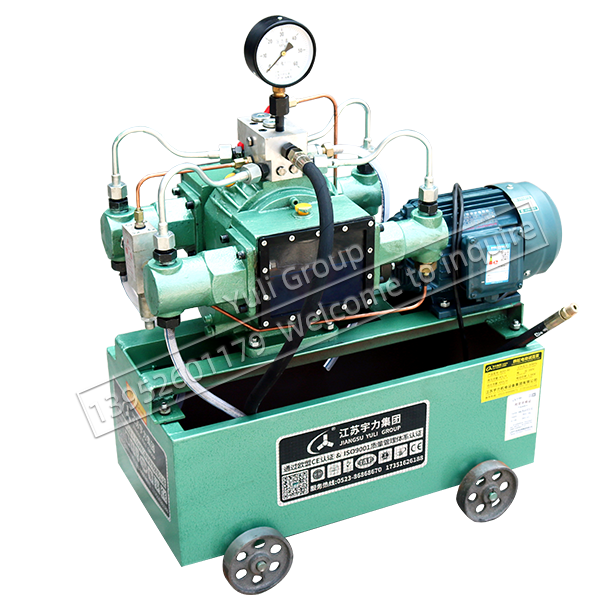

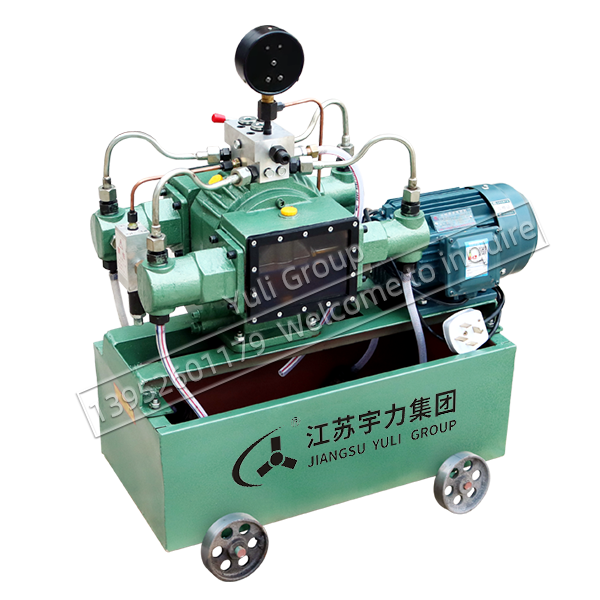

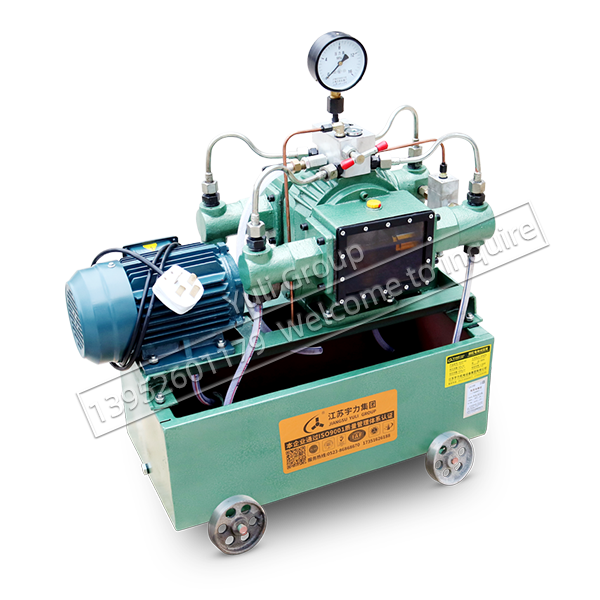

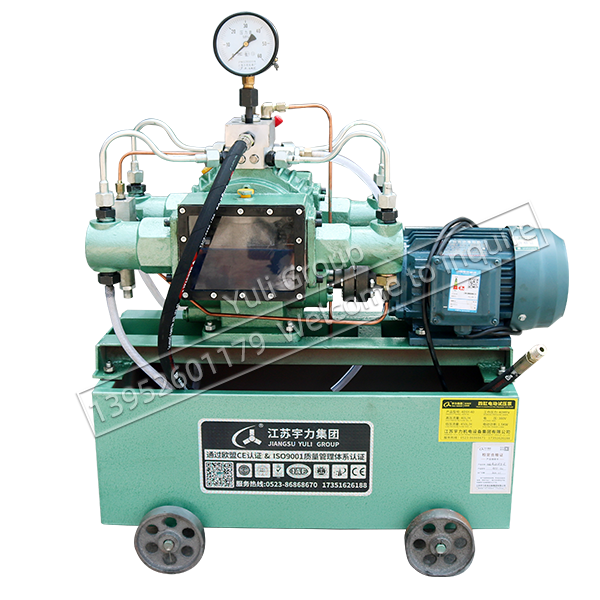

Four-cylinder electric pressure test pump

It is suitable for pressure test of various pressure vessels, pipelines, valves, boilers, etc. with water as medium or liquid pressure oil as medium. This machine is a horizontal, four plunger pressure pump, mainly composed of water tank, frame, electric motor, reduction box, high and low pressure water cylinder, water collection block, connector, pressure gauge, etc. The electric pressure test pump is a reciprocating plunger pump. The motor drives the plunger and drives the slider to move to inject water into the object under test, so that the pressure gradually rises. The pressure test pump has compact and reasonable structure, labor-saving operation, light weight of the whole machine, and motor drive, which greatly improves work efficiency. The default voltage is 380v, 220v can be customized.


  • Features

Accurate pressure measurement, shock-proof oil meter, large-capacity water tank, new generation reduction turbine box, alloy pump head, one-piece molding, durable motor, fast speed, low power consumption, high degree of "three modernizations", long service life, stable performance Mobile and flexible features. It can be used in various pressure vessel pipeline valves, steam boilers and other equipment for pressure testing and obtaining high-pressure liquid in the laboratory. It is suitable for chemical, construction, plumbing, petroleum, coal, metallurgy, shipbuilding industries.


  • Parameters

model

Work pressure/MPA

High pressure flowL/H

Low pressure flowL/H

Motor Power/KW

Voltage/v

weight/KG

Dimensions/CM

4DSY-2.5

2.5

340

760

1.5

380

≈125

84×47×90

4DSY-4.0

4

190

610

1.5

380

≈125

84×47×90

4DSY-6.3

6.3

140

557

1.5

380

≈125

84×47×90

4DSY-10

10

90

507

1.5

380

≈125

84×47×90

4DSY-16

16

57

474

1.5

380

≈125

84×47×90

4DSY-25

25

32

449

1.5

380

≈125

84×47×90

4DSY-40

40

40

450

1.5

380

≈125

88×52×100

4DSY-60

60

31

440

1.5

380

≈180

88×52×100

4DSY-80

80

20

432

1.5

380

≈180

88×52×100

4DSY-100

100

20

432

1.5

380

≈180

88×52×100
