Two way solenoid valve electric pump

The performance of the copper core motor is stable, the dual-circuit dual solenoid valve configuration is convenient and labor-saving, the shock-proof pressure gauge has a clear reading, and the wiring method is divided into three-phase and two-phase input.


  • Features

The hydraulic electric pump has dual-circuit oil supply to avoid slow spring return and non-synchronization. It is convenient and quick: the product design has high and low pressure two-break type, fast oil output, fast speed, high efficiency, and high pressure; pressure is adopted The meter overload protection device can avoid overload damage. At the same time, there is a pressure gauge, which can observe the pressure changes during work at any time.


  • Parameters

Parameter model

preset pressure

Limited Data

Motor Power

Fuel tank capacity

High pressure

Low pressure

High pressure flow

Low pressure flow

DCF0.75

63Mpa

6.3Mpa

0.7L/min

2.4L/min

0.75KW

15L

DCF1.5

63Mpa

4Mpa

1.0L/min

6L/min

1.5KW

30L,40L,60L

DCF2.2

63Mpa

4Mpa

2.4L/min

9L/min

2.2KW

40L,60L

DCF3.0

63Mpa

4Mpa

3.0L/min

9L/min

3.0KW

40L,60L

DCF4.0

63Mpa

4Mpa

4.0L/min

9L/min

4.0KW

40L,60L

DCF5.5

63Mpa

4Mpa

6.0L/min

9L/min

5.5KW

90L,120L

DCF7.5

63Mpa

4Mpa

7.0L/min

9L/min

7.5KW

90L,120L

DCF11

63Mpa

4Mpa

11.0L/min

23L/min

11.0KW

160L,200L,300L

DCF15

63Mpa

4Mpa

15.0L/min

23L/min

15.0KW

160L,200L,300L


  • Programme

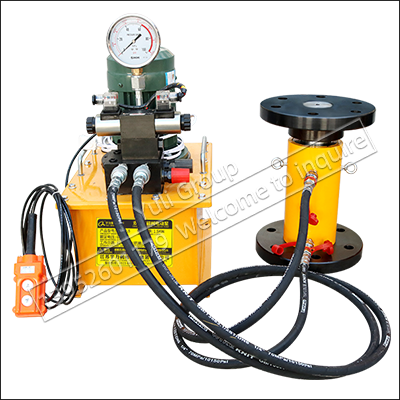

Conventional two-way solenoid valve flange jack electric set

Features:The hydraulic electric pump has dual-circuit oil supply, avoiding slow spring return and non-synchronization.

It is convenient and quick: the product design has high and low pressure two-break type, fast oil output, fast speed,

high efficiency, and high pressure; The pressure gauge overload protection device can avoid overload damage. At the

same time,  there is a pressure gauge, which can observe the pressure changes during work at any time.

uses: After the pump is equipped with other hydraulic tools, it can perform many tasks such as lifting, bending, pipe

bending, straightening, shearing, forming, assembly, and disassembly.

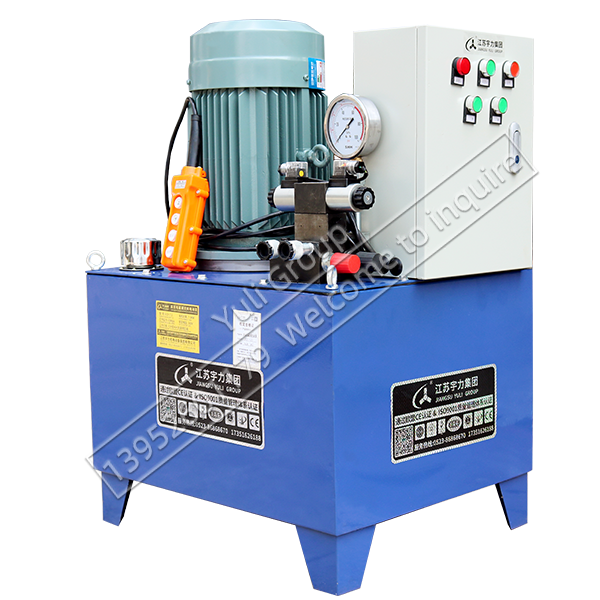

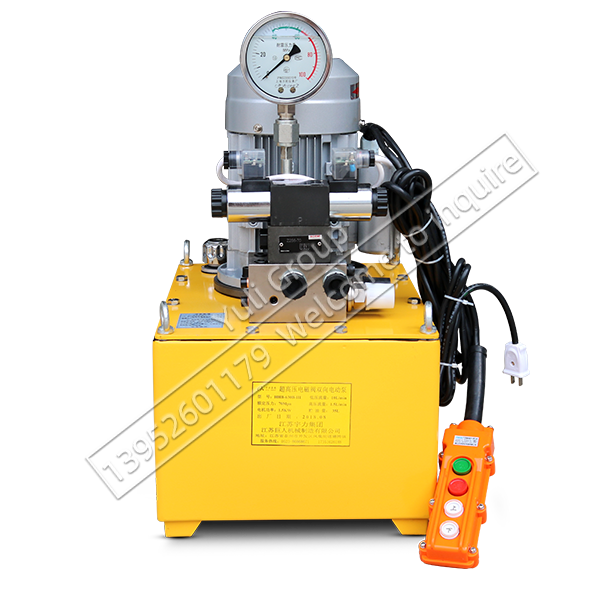

Conventional two-way solenoid valve electric set

Features: The hydraulic electric pump has dual-circuit oil supply to avoid slow spring return and non-synchronization.

It is convenient and quick. The product design has high and low pressure two-break type, fast oil output, fast speed, high

efficiency and high pressure; The pressure gauge overload protection device can avoid overload damage. At the same time,

there is a pressure gauge, which can observe the pressure changes during work at any time.

uses: After the pump is equipped with other hydraulic tools, it can perform many tasks such as lifting, bending, pipe bending,

straightening, shearing, forming, assembly, and disassembly.
