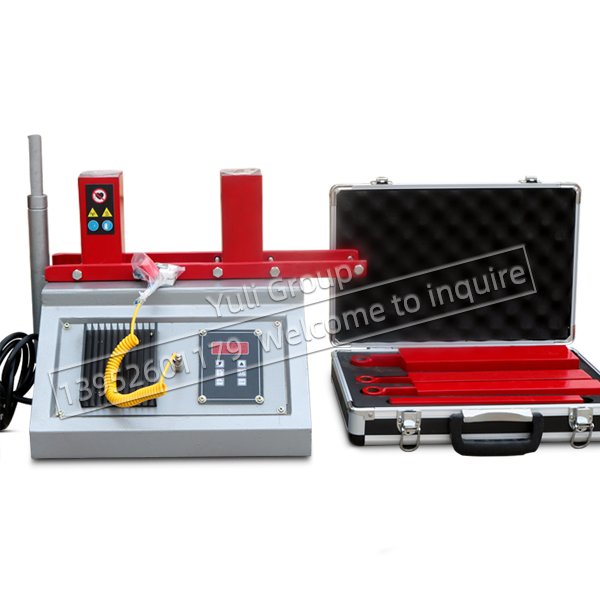

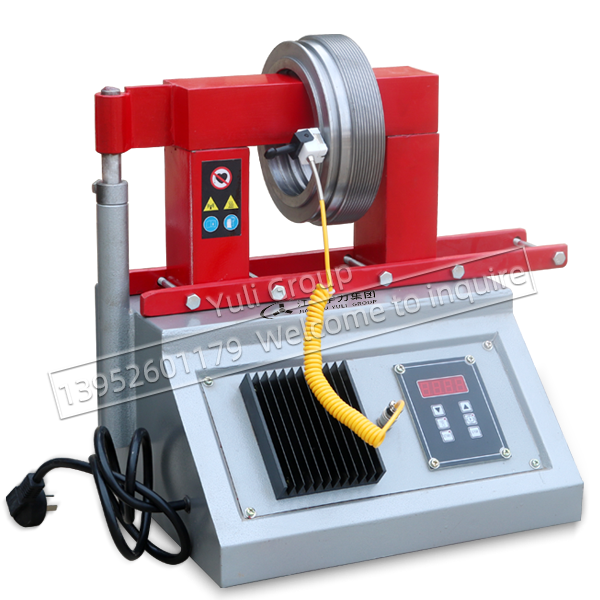

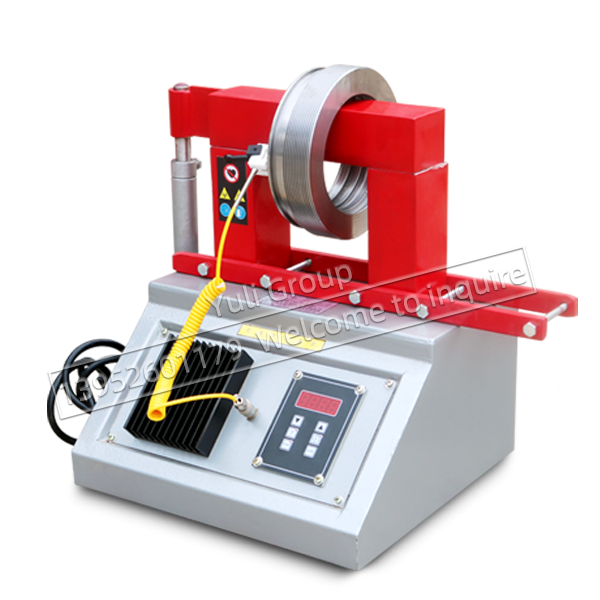

Microcomputer bearing heater YL-3

The magnetic field generated by the coil through electromagnetic induction generates a large amount of current inside the workpiece, which is converted into heat. High voltage and low current pass through the induction coil with a large number of turns, and low voltage and high current are generated on the workpiece


  • Features

Apply a layer of general bearing grease to the contact surface of the horizontal and vertical yoke, which not only reduces the magnetic field loss, but also significantly reduces the noise level


  • Parameters

Model

YL-1

YL-2

YL-3

YL-4

YL-5

YL-6

YL-7

YL-8

YL-9

YL-10

Equipment  power

1KVA

3.6KVA

3.6KVA

8KVA

12KVA

24KVA

12KVA

24KVA

40KVA

95KVA

Voltage

220V

220V

220V

380V(Two-phase)

380V(Two-phase)

380V(Two-phase)

380V(Two-phase)

380V(Two-phase)

380V(Two-phase)

380V(Two-phase)

Rotating arm

/

/

Have

Have

Have

Have

Have

/

/

/

Bearing weight

15

35

35

125

250

350

550

600

1250

As required

Bearing inner diameter

30-100

30-160

30-160

50-250

70-400

75-600

75-400

85-600

85-800

145-1200

Bearing outer diameter

150

<340

<340

480

700

700

920

900

1400

2500

Bearing width

60

150

150

200

265

265

350

400

420

700

Temperature

300℃

Magnetic probe

Have

Temperature digital display

Have

Way to control

Manual / time control / temperature control

Time limit

0-99min

Time digital display

Have

Voice prompt

Have
