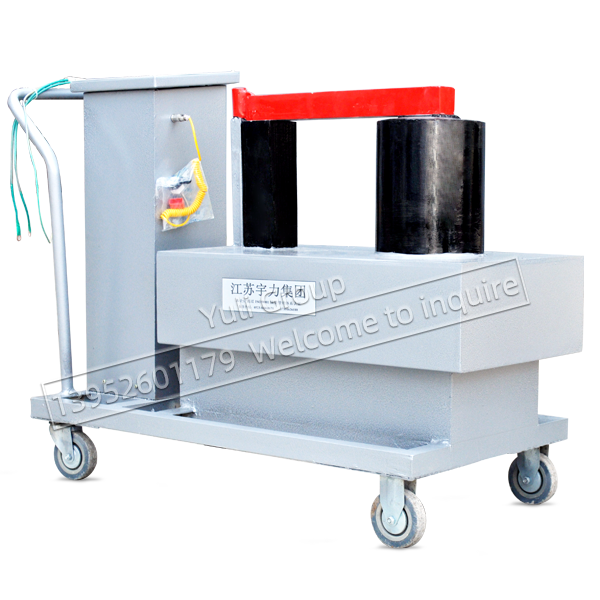

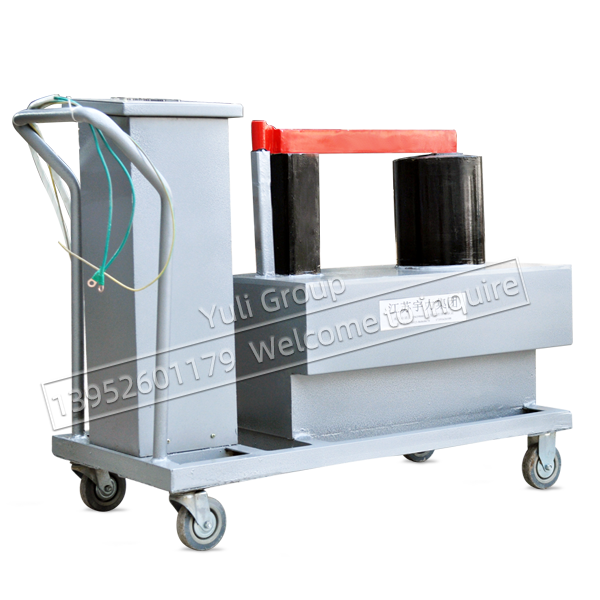

Vehicle bearing heater VLY

The magnetic field generated by the coil through electromagnetic induction generates a large amount of current inside the workpiece, which is converted into heat. High voltage and low current pass through the induction coil with a large number of turns, and low voltage and high current are generated on the workpiece. Because the electromagnetic characteristics of the workpiece are equivalent to a single-turn short-circuit coil, high current is generated in the workpiece to generate heat. Because the current is generated inside the workpiece, the other components of the heater are not Will be heated


  • Features

The induction heater method is modern, effective and reliable. Compared with other heating methods, this method is simpler, faster and cleaner in actual operation.


  • Parameters

Model

VLY-1

VLY-2

VLY-3

VLY-4

Rated power KVA

2.2

5.5

7.5

10

Rated voltage V

220

380V

380V

380V

Rated current A

10

16

20

25

way to control

Manual control/temperature control/time control

Magnetic probe

Have

Have

Have

Have

Automatic demagnetization

automatic

automatic

automatic

automatic

Time digital display

Have

Have

Have

Have

Temperature digital display

Have

Have

Have

Have

Heating range

270℃

270℃

270℃

270℃

Heating time

999s

999s

999s

999s

Heating the workpiece

Inner diameter

35-85

60-200

60-250

85-400

Outer diameter

280

350

450

600

Width

100

150

180

200
