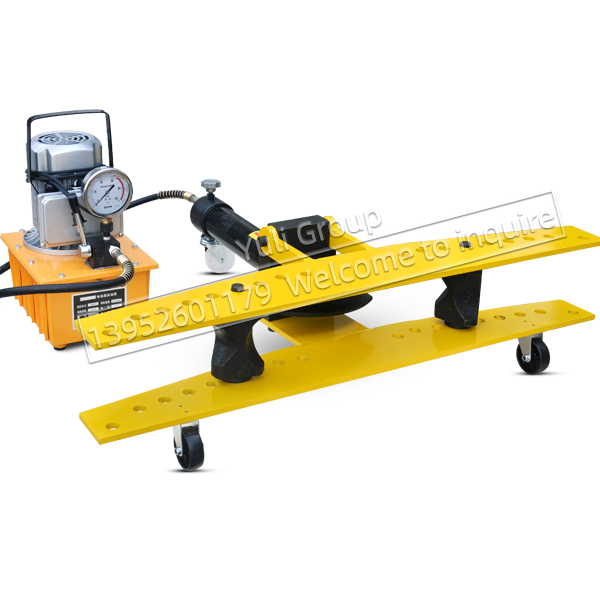

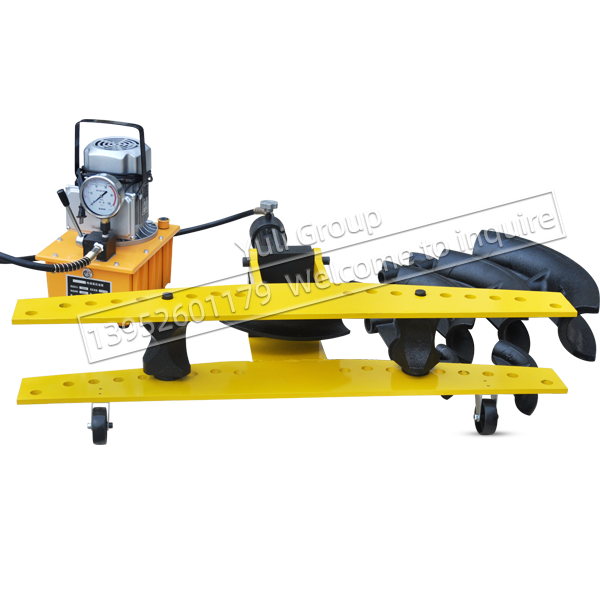

Electric hydraulic pipe bender

The pipe bender that bends special-shaped low-pressure fluid conveying pipes under cold conditions can bend in any direction with a bending angle of up to 90 degrees. The machine has a simple structure and easy operation. The curved arc surface is smooth, which will cause deformation and wrinkles;

  • Features

Such as copper pipes, aluminum pipes, fine-rolled steel pipes, hydraulic pipes, coated or uncoated pipes, ordinary water pipes, thick steel pipes and silk pipes, which are widely used in construction, chemical, plumbing, petroleum, coal, shipbuilding and other industries

  • Parameters

Model

Contribute

Stroke

Wall thickness

Bending range

Configuration mold (inch)

Overall weight

1寸

6

150

2.3-3.4mm

Φ16-Φ25mm

3/81"1/2"3/4"0"

17

2寸

13

250

2.8-3.9mm

Φ21.3-Φ60mm

1/2"3/4"1"1¼"1½"2"

66.9

3寸

20

290

2.3-4.5mm

Φ21.3-Φ88.5mm

1/2"3/4"1"1¼"1½"2"/2½"3"

120.8

4寸

20

370

3.7-5.0mm

Φ21.3-Φ108mm

1/2"3/4"1"1¼"1½"2"/2½"3"4"

163.8
