Wire Rope Sleeve Machine

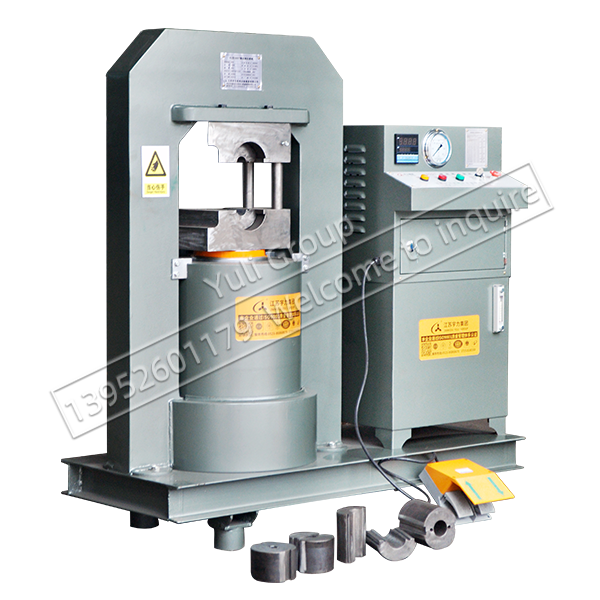

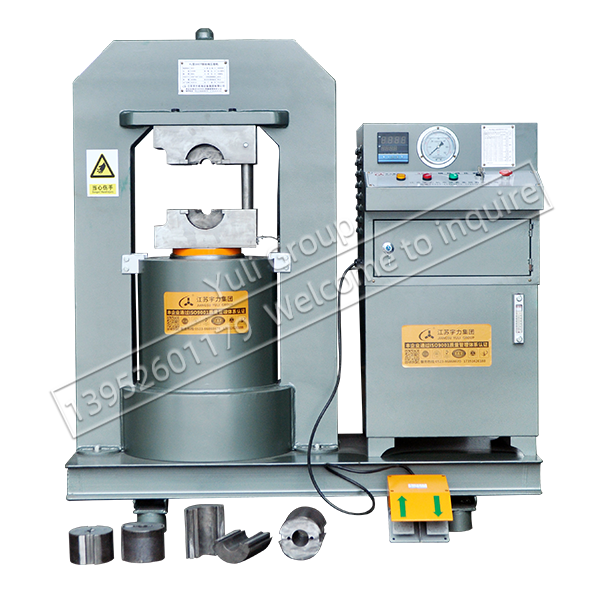

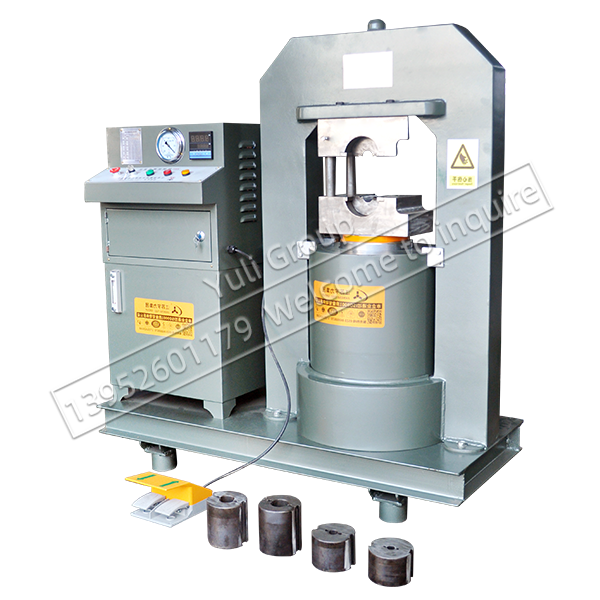

The wire rope pressing machine is mainly composed of a hydraulic press and a hydraulic station. The hydraulic press is mainly composed of a mold base, a module, a cylinder, a piston, and a cylinder bottom. The hydraulic station is mainly composed of a motor, a hydraulic pump station, an integrated block, and an electromagnetic reversing valve. It is widely used in various hoisting industries. Compared with the previous plug-in machine, the crimping of steel wire rope has the advantages of reliability, beauty and simplicity.


  • Features

The machine adopts an electromechanical integrated design. It can press different specifications of wire ropes by changing different molds, and has the characteristics of simple operation. The hydraulic system is dual-controlled, and the pressure can be controlled by the overflow regulating valve and the magnetic contact pressure gauge. The electrical control part adopts low voltage control. The pressed steel wire rope has high tensile force, beautiful appearance and fast speed. It only takes a few minutes to crimp a set of steel wire rope.


  • Parameters

Model

YLD-50T

YLD-100T

YLD-200T

YLD-300T

YLD-500T

YLD-1000T

YLD-2000T

pressure/KN

500

1000

2000

3000

5000

10000

20000

Squeeze the rope once/mm

<Φ11

<Φ14

<Φ20

<Φ26

<Φ36

<Φ46

<Φ66

Multiple suppression
 rope diameter/mm

<Φ13

<Φ18

<Φ26

<Φ34

<Φ44

<Φ60

<Φ74

stroke/mm

90

80

85

90

140

250

220

work plan/mm

80

60

70

75

80

185

210

net weight/KG

260

680

760

1000

3000

76000

1380

power/KW

3

3

3.7/4.0

3.7/4.0

5.5

7.5+4

7.5+4

Work pressure/MPA

28

28

58

56

26

56

56

Piston up speed/S

8

6.8

5.6

4.8

3.6

/

4.8

Piston down speed/S

1

9.6

8.6

7.8

8.8

/

6.5


Aluminum sleeve
 specifications

Mold model

Hemp core wire rope diameter
mm

Steel core wire rope diamete
rmm

Diameter after pressing

Suppressing
 force(KN)

Pressure setting
value

mm

deviation

6

6

5.4~5.8

4.9~5.8

12

0.3

180

4

6.5

6.5

6.4~6.8

5.9~6.2

13

210

7

7

6.9~7.4

6.3~6.7

14

250

8

8

7.5~8.4

6.8~7.7

16

320

9

9

8.5~9.5

7.8~8.6

18

0.4

410

8

10

10

9.6~10.5

8.7~9.6

20

500

11

11

10.6~11.6

9.7~10.5

22

600

12

12

11.7~12.6

10.6~11.5

24

720

13

13

12.7~13.7

11.6~12.5

26

0.5

850

16

14

14

13.8~14.7

12.6~13.4

28

1000

16

16

14.8~16.8

13.5~15.3

32

1300

18

18

16.9~18.9

15.4~17.3

36

1600

20

20

19.0~21.0

17.4~19.2

40

0.8

2000

22

22

22

21.1~23.1

19.3~21.1

44

2400

24

24

23.2~25.2

21.2~23

48

1

2900

28

26

26

25.3~27.3

23.1~24.9

52

3400
